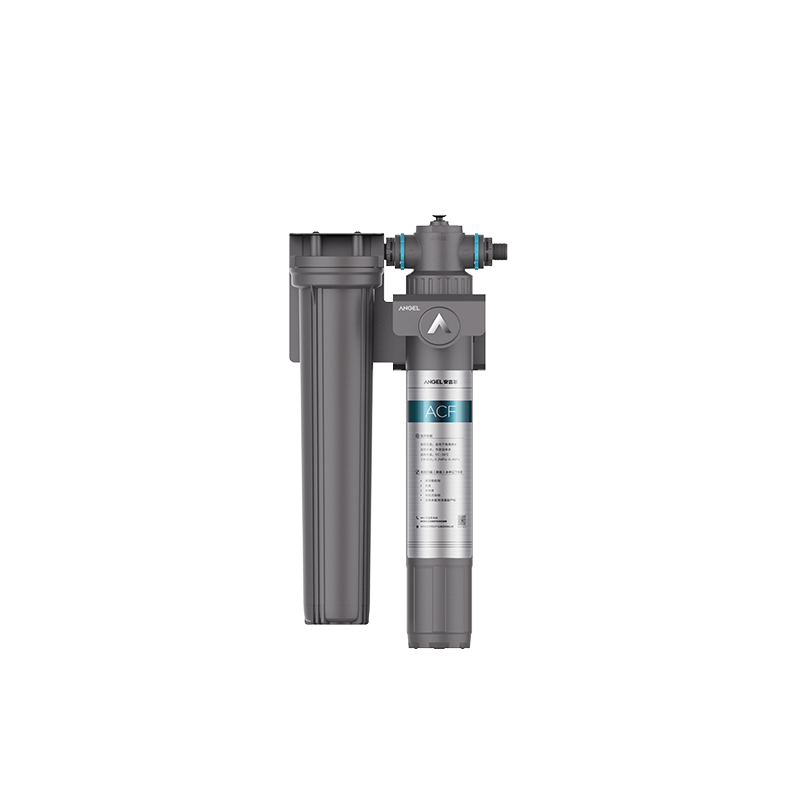

Magadi 500/800 MF Water Purifier

Model:
W-J2810-CS500
W-J2810-CS800

Magadi 500/800 water purifier is designed to reduce chlorine, odor and sediment in water affecting the taste of food and beverages, and delivers clean filtered water for food service providers. Quick, hygienic cartridge change-outs and filtration have made a convenient water purification system. It does not waste water; filtered water goes straight to the faucet. And it can help to keep equipment running smoothly, and prolong the service life of water-using equipment. Magadi 500/800 with an excellent capacity for food service providers. Besides, it supports to be installed on foam wall, hollow brick wall, steel plate wall and steel structure walls.

  • 2/3-Stage filtration: PP+ACF (+ACF)
  • Water flow up to 14 L/min
  • Non-electric
  • Suitable for kitchens 30~100sqm
  • Minimum order quantity: 200 units

Features

Easy to Use

Improve Water Quality
Improve Water Quality

Effectively remove chlorine, odor taste, heavy metal chemicals, and sediment.

High Flow Water Filtration
High Flow Water Filtration

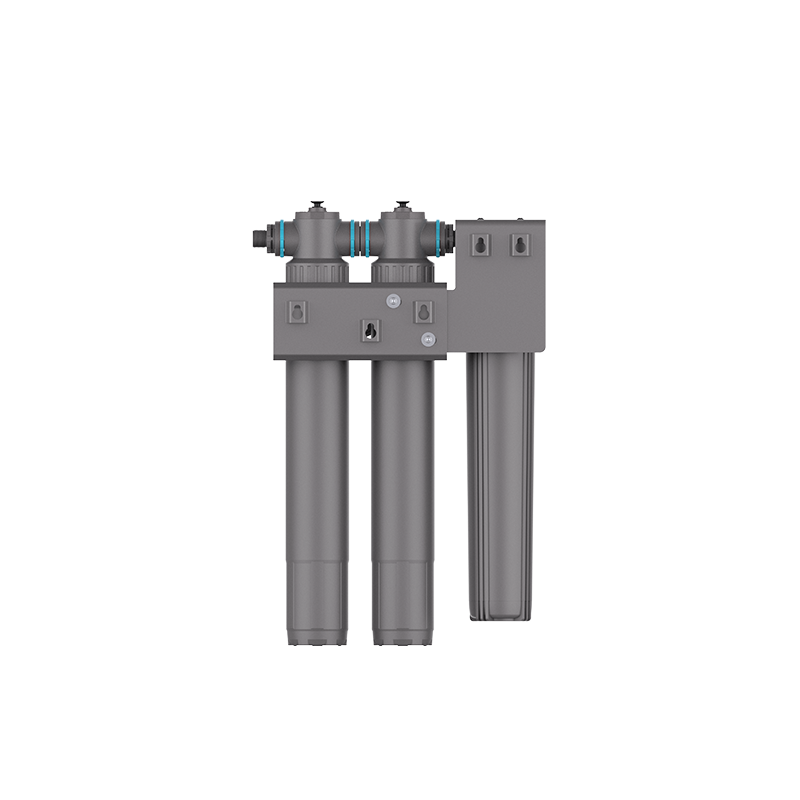

Water filters of Magadi 800 are installed in series and parallel for water supply up to 14 L/min.

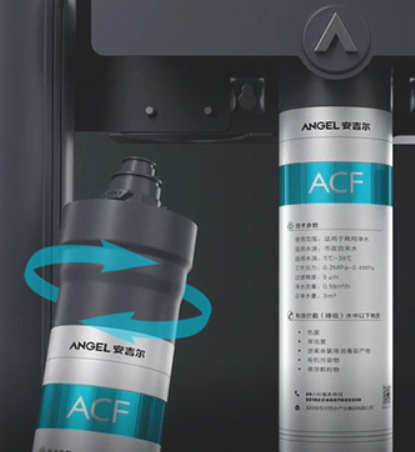

Easy Filter Replacement
Easy Filter Replacement

Twist-to-lock bayonet-style design for easy filter removal.

Specifications

Model Y1251LKY-ROM
W-J2810-CS500
W-J2810-CS800
Flow Rate W-J2810-CS500: 5-7 L/min
W-J2810-CS800: 8-14 L/min
Filter W-J2810-CS500:
PP
ACF

W-J2810-CS800:
PP
ACF x2
Inlet Water Temp 5-38℃
Inlet Water Pressure 200-400Kpa
Operating Temperatures 4-40℃
Power Consumption Non-electric
Dimensions (W*D*H) W-J2810-CS500: 292*151*621mm
W-J2810-CS800: 412*151*621mm
* Service life will vary according to flow rate, influent line
